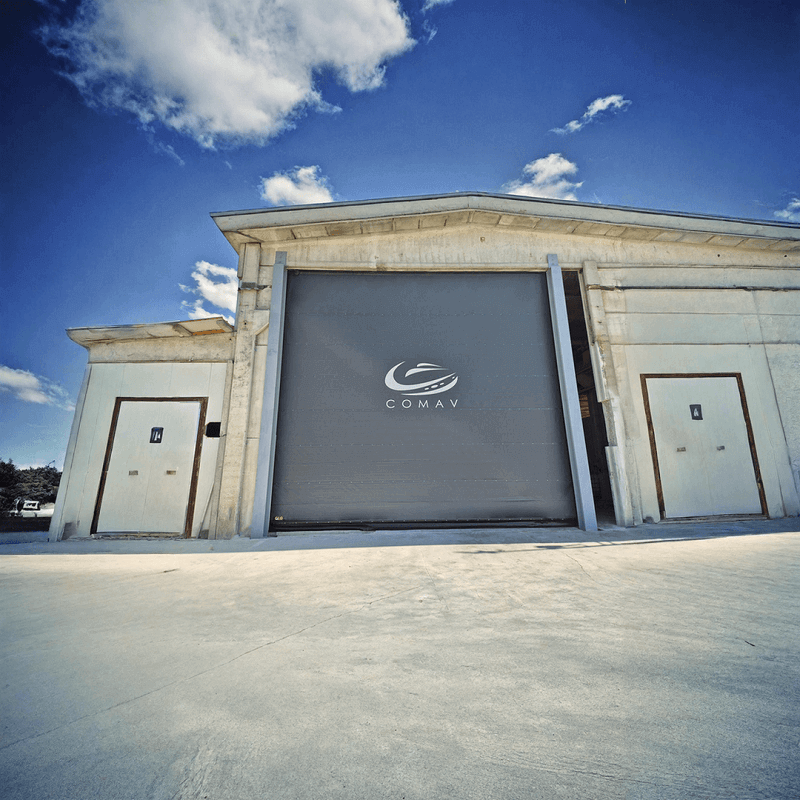

VertiGO Double Slim

Discounts and methods reserved for subscribers Account

Information about the PROMO.

Get informed by our consultants about active promotions.

Ask for more info

Get advice from our sales technicians on all the accessories available for your rapid door.

Get in touch with our recruiters, attach your CV for your job application.

Multi-engine

To obtain a good fluidity of movement of the crankshaft we have provided, even in the smaller versions, the equipment of a constant propulsion of more than 400V three-phase engines.

Design with double, triple or quadruple synchronous motor, which always guarantees a high precision of balanced lifting, even on large openings.

SOUND INSULATION

Noise abatement

By means of this double PVC fabric fold-up door you will be able to reduce and cushion up to 40% the noise of the environment. In addition, to improve the sound-absorbing performance, we recommend the use of insulated sponge cloth.

INTERCHANGEABLE SECTORS

Double modular PVC fabric

The PVC fabric is composed of individual sectors inserted in double ogive profiles. This system allows to replace in case of damage or wear the individual sectors that make up the mantle without having to replace the entire covering.

We contain the draughts

Air sealant ⓘ
A development that grants maximum sealing by means of physical adhesion between different materials. For more performant features please see the ZipGO Clean Room version, where the details of the cross-section casing and struts have also been designed to allow the least dispersion of steam between environments.

By means of a special insulation system, the ZipGO self-repairing door can transform an open environment to a sealed one. Thanks to a special system that works in adhesion to the upper transverse casing and to a lower band* applied on the weighing bag, it is possible to guarantee an excellent sealing of the dust when the door is closed.

* the band under the weight bag can be selected in physical or magnetic material for better sealing on the ground.

Fabric

PVC standard

External composition in PVC

Touch	Aesthetic	Thickness
Matte/Glossy	11 colours + silver	0,9/1 mm

Internal composition in PES

Textured	Title	Weight
1 woven canvas	1100 Dtex 12×12	900gr/m²

Chemical and physical tests

Type of test	Standard	Result
Cold resistance	4675/90	-52°C
Hydrolysis test	75°C 95% di umidità	no effect
Diesel test	1421	no effect
Salt test	1421	no effect
Ozone test	3011	no break
Flame test	3795	Less than 100mm/min
Drilling test	RINA 3.A1.2.7	(N) > 100
Operating temperature	6065	no effect
Breaking load	1421	6000 N every 50 mm
Elongation of the warp	1421	4300 N every 50 mm
Elongation of the texture	1421	4000 N every 50 mm
Warp tearing	dIN 53 363	(N) > 600
Tearing of the texture	dIN 53 363	(N) > 530
Adhesive power	dIN EN ISO 2411	130 N every 50 mm

Special requests

Do you need a silkscreened CMYK sheet?

Sponge fabric

Color collection

Crystal

Transparent PVC

External composition in transparent PVC

Hardness	Aesthetic	Thickness and weight
4.0s	Transparent	1.2 mm / 1200 gr/m²

Chemical and physical tests

Feature	Standard	Value
Light transmission	JIS K – 7361	97.3%
Transversal tension	JIS K – 6732	24.3N
Longitudinal traction	JIS K – 6732	26.1N
Transverse laceration	JIS K – 6732	63.9N
Longitudinal laceration	JIS K – 6732	63.4N
Transverse elongation	JIS K – 6732	378%
Longitudinal elongation	JIS K – 6732	377%
Cold resistance	JIS K – 6772	-45°C
Flame resistance	–	Passed

Discover some application

Tests carried out for ZipGO

EC legislation	Ref. 1	Ref. 2	Result
Wind resistance	EN 12424	13241/CE	Class 2*
Wind speed with moving door	—	—	< 20 m/s (60 km/h)
Standard soundproofing	ISO 170	—	15 dB Rw
Water resistance	EN12426	—	0.11 kPa for closed door – Class 3
Performance	EN 12604	EN 12605	1,000,000 cycles > 200 cycles/hour

* the tests were performed specifically on this basic version of ZipGO. It is possible to improve wind resistance up to Class 4 by circumventing the door’s self-repairability feature.

Italian design, design, research and development supported by German engines and electronics make the GLG rapid doors an international excellence.

Integrated motorisation

400V three-phase Monovelocity with programmable logic and digital absolute control and limit switch.

The installation of a fold-up industrial door can be done with 1kw side motor, 2.2kw front motor or, for dimensions greater than 10 meters, with double synchronous motor, always ensuring a high lifting precision balanced even on large openings.

Convenience from a life

Unparalleled cost effectiveness

Thanks to our R&D department we have been able, for over 40 years, to significantly reduce the production costs of RolliGO, placing it on the market always at a very affordable price. This quick winding door is in fact the simplest and most economical solution to automate the entrances characterized by quick and frequent passages, in any industrial or commercial context.

Ease of assembly never seen before

Swedish assembly

By means of pre-assembled packaging and tutorials, all the partners of the installation network will have the possibility to keep constantly updated to the rules of simple assembly, for all GLG products.

Ready in stock

Didn’t find what you were looking for?

Ask for a customized quote ➜

Vantaggi del magazzino

Un nostro referente evaderà la tua richiesta entro 48h dall’invio del modulo per organizzare un primo sopralluogo e redigere una quotazione su misura.

Sconti maggiorati rispetto al listino

Tempi di consegna ridotti

Pagamento di acconto con rate ammortizzabili

Garanzia di 2 anni dall'installazione

What color do you want?

Standard PVC fabric and colours available (RAL-like)

Red RAL 3002	Blue RAL 5010	Orange RAL 2004	Light grey RAL 7035
Medium gray RAL 7038	Dark gray RAL 676A6C	Cream RAL 1013	White RAL 9003
Silver RAL 9006	White gray RAL 9002	Light blue RAL 5012	Black RAL 9005
Anthracite RAL 7016	Blue RAL 5015	Blue RAL 5002	Green RAL 6005
Green RAL 6026	Green RAL 6018	Yellow RAL 1003	Yellow RAL 1021

PVC collection

x

VertiGO

See all the colours available for our fold-up door.

Red
RAL 3002

Blue
RAL 5010

Orange
RAL 2004

Light grey
RAL 7035

Medium grey
RAL 7038

Dark grey
RAL 7042

Cream
RAL 1013

White
RAL 9003

White grey
RAL 9002

Light blue
RAL 5012

Black
RAL 9005

Anthracite
RAL 7016

Blue
RAL 5015

Blue
RAL 5002

Green
RAL 6005

Green
RAL 6026

Green
RAL 6018

Silver
RAL 9006

Yellow
RAL 1003

Yellow
RAL 1021

Collezione PVC

x

RolliZIP

Osserva tutti i colori disponibili per la nostra porta ad avvolgimento autoriparante.

Red
RAL 3002

Blue
RAL 5010

Orange
RAL 2004

Light grey
RAL 7035

Medium grey
RAL 7038

Dark grey
RAL 7042

Cream
RAL 1013

White
RAL 9003

Silver
RAL 9006

White grey
RAL 9002

Light blue
RAL 5012

Black
RAL 9005

Anthracite
RAL 7016

Blue
RAL 5015

Blue
RAL 5002

Green
RAL 6005

Green
RAL 6026

Green
RAL 6018

Yellow
RAL 1003

Yellow
RAL 1021

Custom screen printing

x

Vertigo

From logos to the most creative designs, ask us anything you want… our department of teloneria knows no limits.

TELO EN

What is it intended for?

Door model

Movable tunnel

Competitor name

Rapid door model

Movable tunnel model

What type of towel do you want?

PVC total area

m²

Windows?

Yes, with porthole.

Sectors with full vision windows

No thank you.

Course for automations

Competence elements:

Carry out preliminary checks for installation.
Recognize the various elements for the correct installation sequence.
Perform the fastening of the automations.
Attach the various accessories, such as photocells and flashing lights.
Make the main adjustments and connections.
Install the engine and its accessories.
Carry out the testing and commissioning of the motorized door.
Know the main spare parts.
Carry out scheduled maintenance for various types of automation.

Prerequisites:

Basic knowledge of electrical installation and maintenance.

Course content:

Theoretical introduction and recommendations.
Explanation of the checks to be carried out on the construction site before opening the packaging.
Opening sequence of the packaging and verification of the elements contained.
Assembly of various types of towed motors used and relationship between product and engines.
Check the balance suitable for the presence of the engine.
Engine installation and related accessories.
Final testing with the completion of the warranty start-up certificate.
Deepening of the main engines and related accessories.
Test of scheduled maintenance.
Explanation on automation control devices/programmers.
Explanation of the reference standards for product supply and installation.

Methods of training:

Frontal exposure moment for the theoretical premise and recommendations.
Demonstration of assembly of towed motors from the opening of the packaging to the regulation.
Vision of the various educational panels with motors and specific accessories installed.
Moment of frontal exposure for the deepenings.
Front exposure moment for various types of programmers in use.

Method of evaluation:

Final exercise on the topics carried out through questionnaire with multiple answers.

Didactic supports:

PowerPoint presentation for theoretical premise and recommendations.
Projection on screen on the use of programmers.
Educational panels with examples of systems with engines and related accessories.

Logistics lease:

Classroom, showroom exhibition products.

Timing analysis for the content:

Theoretical introduction and recommendations. Explanation of the checks to be carried out on the construction site before opening the packaging. Sequence of opening of the packaging and verification of the elements contained. Execution of fixing the vertical guides. Assembly of the spring assembly on the structure. Execution of the fixing of the horizontal rails. Mounting of the mantle and its accessories. Loading the springs. Checking the balance and alignments. Installing the motor and related accessories. Final testing with completion of the warranty start-up certificate. Deepening of the main soft groups. Deepening of the main engines and related accessories. Mounting of a mantle with pedestrian door inserted. Installation of a safety traction. Scheduled maintenance test. Explanation of product reference standards and management of certification documentation on site.

TOTAL DURATION: 3 hours and 20 minutes

Course for technical assembly

This course is designed to provide specific skills to fitters dealing with the installation and assembly of sectional doors and related accessories. The following are the elements of competence, prerequisites, course contents, training methods, evaluation methods, teaching aids, logistics location and timing analysis for the performance of content.

Elements of competence:

Carry out preliminary checks for installation.
Recognize the various elements for the correct installation sequence.
Fasten the rails.
Perform the fastening of the spring assembly.
Make the installation of the mantle and its accessories.
Make the main adjustments for manual operation.
Install the engine and its accessories.
Know how to carry out the testing and commissioning of logistics equipment.
Know the main spare parts.
Carry out scheduled maintenance for the various types of product.

Prerequisites:

Knowledge of product lines and various types of sliding.

Course content:

Theoretical introduction and recommendations.
Explanation of the checks to be carried out on the construction site before opening the packaging.
Opening sequence of the packaging and verification of the elements contained.
Execution of the fixing of the vertical guides.
Mounting the spring assembly on the structure.
Execution of the fixing of the horizontal guides.
Installation of the mantle and its accessories.
Spring loading.
Checking of balance and alignments.
Engine installation and related accessories.
Final testing with the completion of the warranty start-up certificate.
Deepening of the main soft groups.
Deepening of the main engines and related accessories.
Mounting of a mantle with pedestrian door inserted.
Mounting a safety traction.
Test of scheduled maintenance.
Explanation of the reference standards for product supply and installation.

Methods of training:

Frontal exposure moment for the theoretical premise and recommendations.
Demonstration of an installation from the opening of the packaging to the delivery of the warranty start-up booklet.
Moment of frontal exposure for the deepenings.
Demonstration of an installation of a mantle with pedestrian door inserted.
Demonstration of the installation of a safety traction.

Method of evaluation:

Final exercise on the topics carried out through questionnaire with multiple answers.

Didactic supports:

Price list various.
Technical manual sectional doors.
Order form for sectional doors.
Spare parts list.
PowerPoint presentation for theoretical premise and recommendations.
Sectional door packed with motorization.
Panels with examples of soft groups.
Panels with examples of motorization and related accessories.
Mantle with pedestrian door inserted.
Safety traction kit.

Logistics lease:

Classroom. Showroom exhibition products.

Timing analysis for the content:

Theoretical introduction and recommendations. Explanation of the checks to be carried out on the construction site before opening the packaging. Sequence of opening of the packaging and verification of the elements contained. Execution of fixing the vertical guides. Assembly of the spring assembly on the structure. Execution of the fixing of the horizontal rails. Mounting of the mantle and its accessories. Loading the springs. Checking the balance and alignments. Installing the motor and related accessories. Final testing with completion of the warranty start-up certificate. Deepening of the main soft groups. Deepening of the main engines and related accessories. Mounting of a mantle with pedestrian door inserted. Installation of a safety traction. Scheduled maintenance test. Explanation of product reference standards and management of certification documentation on site.

TOTAL DURATION: 2 hours and 40 minutes

Course for sales

This course is designed to provide business-specific skills dealing with the sale of GLG products. Below are listed the elements of competence, prerequisites, course content, training methods, teaching aids, logistics location and timing analysis for the development of content.

Elements of competence:

Know the lines and models produced by GLG.
Know the features of the different types of scrolling available.
Understand how to perform a survey on site.
Be able to make quotes and send orders via the GLG program.
Consult the GLG Extranet for technical information.
Know how to estimate and order the main spare parts.
Know the legal regulations governing the supply and installation of GLG products.

Prerequisites:

No prerequisites are required to attend the course.

Course content:

Explanation of products divided by lines and models.
Deepening of each model and their main characteristics.
Product completion with mandatory and optional accessories.
Explanation of different sliding types and their main applications.
Automation of sliding systems.
Basic technique for measuring measures on site for a sectional door.
Presentation of the program for GLG quotations/orders.
Presentation of the program for quotes/ spare parts orders.
Extranet platform presentation and access mode.
Explanation of the reference standards for product supply and installation.

Methods of training:

Moments of frontal exposure for the main topics of the course.
Case analysis only for the explanation of the program for GLG estimates.

Didactic supports:

Price list various.
Technical manual sectional doors.
Order form for sectional doors.
Spare parts list.
PowerPoint presentation of product lines and templates.
PowerPoint presentation for individual templates, their main features and available accessories.
Presentation in PowerPoint on the automation of sliding systems and their mandatory accessories.
Program for GLG estimates.
Program for exchanges GLG.
PowerPoint presentation on product regulations with technical and professional rules and requirements.

Logistics lease:

Classroom. Showroom exhibition products.

Timing analysis for the content:

General explanation of products divided into lines and models.
Deepening of each individual model and their main characteristics.
Product completion with mandatory and optional accessories.
Explanation of different sliding types and their main applications.
Automation of sliding systems.
Basic technique for measuring measurements on site.
Presentation of the program for GLG quotations/orders.
Presentation of the program for quotes/ spare parts orders.
Detailed explanation of the leading products RolliGO, Vertigo, RolliZIP, Alumina.
Presentation and use of the Extranet.
Explanation of product reference standards.

TOTAL DURATION: 6 hours

Get in touch with our managers. We’ll talk about how many major brands have solved their logistics problems with our doors.

Italian design, research and development supported by German engines and electronics make the GLG rapid doors an international excellence.

Maximum flexibility

An easy programming unit that can meet the needs of all types of applications.

Exceptional reliability

The mechanics of automation for our industrial closures guarantee a long life cycle of the plant.

Customizable

The numerous combination possibilities, together with the revolutionary control technology and the wide range of accessories, fully meet the needs of the market.

Efficiency in performance

Their 230 V/400 V technology stands out for its high power and vibration-free operation, even with high loads.

Easy to install and easy to maintain

The intelligent and customer-oriented technology guarantees the highest degree of customer satisfaction.

Repairs and controls close to zero

Very low maintenance

Thanks to our know-how we are able to develop our RolliGO by always attaching them to the adjective lasting in time. Therefore, they require very few extraordinary maintenance since the original project is still based on the first drawings of the founder and continues today to receive updates with the sole purpose of making it both efficient and economical.

PVC Collection

x

RolliGO

See all the colors available for our door wrapping with bars.

Red
RAL 3002

Blue
RAL 5010

Orange
RAL 2004

Light gray
RAL 7035

Medium grey
RAL 7038

Dark grey
RAL 7042

Cream
RAL 1013

White
RAL 9003

Silver
RAL 9006

White grey
RAL 9002

Light blue
RAL 5012

Black
RAL 9005

Anthracite
RAL 7016

Blue
RAL 5015

Blue
RAL 5002

Green
RAL 6005

Green
RAL 6026

Green
RAL 6018

Yellow
RAL 1003

Yellow
RAL 1021

GLG is always there, before and after the sale.

Emergency

Prompt intervention on all products and immediate technical assistance.

We'll call you back

Quotes

Priority line for logistic consultancies and custom estimates.

Ask for yours

Start from your field

→

Find reseller

General contacts

Ask for business information

+39 032 143 7913

Emergencies

Request intervention or technical assistance

+39 032 165 3668

GLG in the World

Europe

PL

Asia

RU

America

MX

Tipo di manto	Insulated panel in aluminium
Colore manto	See More
Tipo di movimento	Horizontal
Antieffrazione	Si
Architettura	Press-folded + Panel
Tipo di struttura	Galvanized steel Pre-painted steel Stainless steel
Resistenza al vento	Class 4

Tipo di movimento	Hinged lip
Larghezza	2000 mm
Profondità	1000 mm 1200 mm 1500 mm

Resistenza al fuoco	EI 120 EI 180
Tipo di movimento	Horizontal
Architettura	Panel
Tipo di manto	Fireproof panel
Antieffrazione	Si

Velocità di apertura	1,8 m/s
Tipo di manto	Insulated panel in aluminium
Architettura	Press-folded + Panel
Tipo di struttura	Galvanized steel
Antieffrazione	Si
Resistenza al vento	Class 3

Architettura	Press-folded + Panel
Tipo di struttura	Galvanized steel
Antieffrazione	Si
Tipo di manto	Galvanized single-family surface Insulated panel galvanized Insulated panel in aluminium

About us

VertiGO Double Slim

Customer reviews

Reviews

Be the first to review “VertiGO Double Slim” Cancel reply

Related products

Folding door

GS – Mini-dock leveller

Fire-rated gate

SpiralGO – Spiral door

Industrial shutter

StripGO – Flexible strip closure

GMG – Sectional door (total horizontal)

Cold

SDL – Dock leveler

ZipGO Conveyor

Start from your field

Stay tuned

Do you trust Made in Italy?

Headquarter

Connect

Featured

Services

Useful link

Support

Do you trust Made in Italy?

Quick contact

🇮🇹 GLG Italia

🇲🇦 GLG Morocco

🇵🇱 GLG Polska

🇲🇽 GLG Mexico

🇪🇸 GLG Iberica

About us

Emergency

Quotes

Start from your field

General contacts

Emergencies

Asia

America
