Description
Data sheet
Structure
Standard
Galvanised steel
On request
Optional RAL painted or AISI 304 316 stainless steel
Standard
6000 mm x H 6000 mm
On request
Possibility of larger dimensions than standard
Tests
Standard UNI EN 13241/CE
Reference standard: UNI EN13241-1
Wind load resistance: compliant with EN12424 / EN12444 – Class 2 depending on dimensions
Water penetration resistance: compliant with EN12425 / EN12489 – Class 5
Air permeability: compliant with EN12426 / EN12427 – Class 1
Opening safety: compliant with EN12453 / EN12445
Mechanical aspects: compliant with EN12604 / EN12605
Operating cycles: EN12604 / EN12605 – 1,000,000 cycles
Values may vary depending on the door dimensions
Safety
Components
Door position sensor: PL e SIL 3
Optical barriers H2000–2500 mm, activation 10 m, SIL 2
Operating temperature of optical barriers: -40 °C / +60 °C – IP67
Radar with presence / motion discrimination, max. mounting 7 m
Operating temperature of radar: -20 °C / +55 °C – IP65
Magnetic loops
Optical / acoustic signals programmable from the panel
Emergency stop from external button or via input on the panel
Light curtains, emergency stop and limit switch monitoring certified PLd according to EN ISO 13849-1 and SIL 1 according to EN 62061
Emergency release
Manual opening with supplied crank
UPS
Special requests
Do you need a special feature for this product?
Log in or register
Discover all the features of this logistics product to see if it is the right one for your business.
Drawings
Brochure

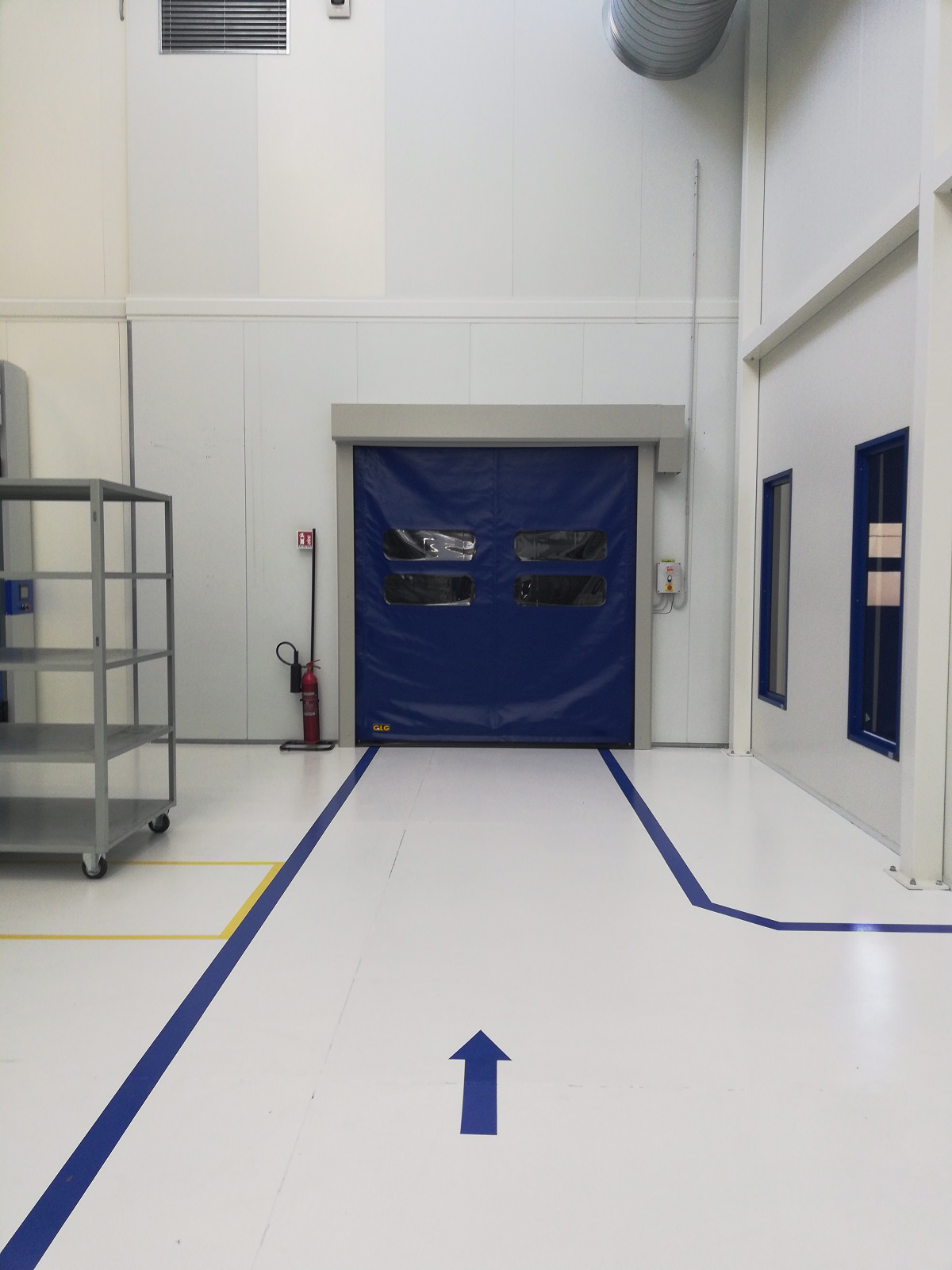

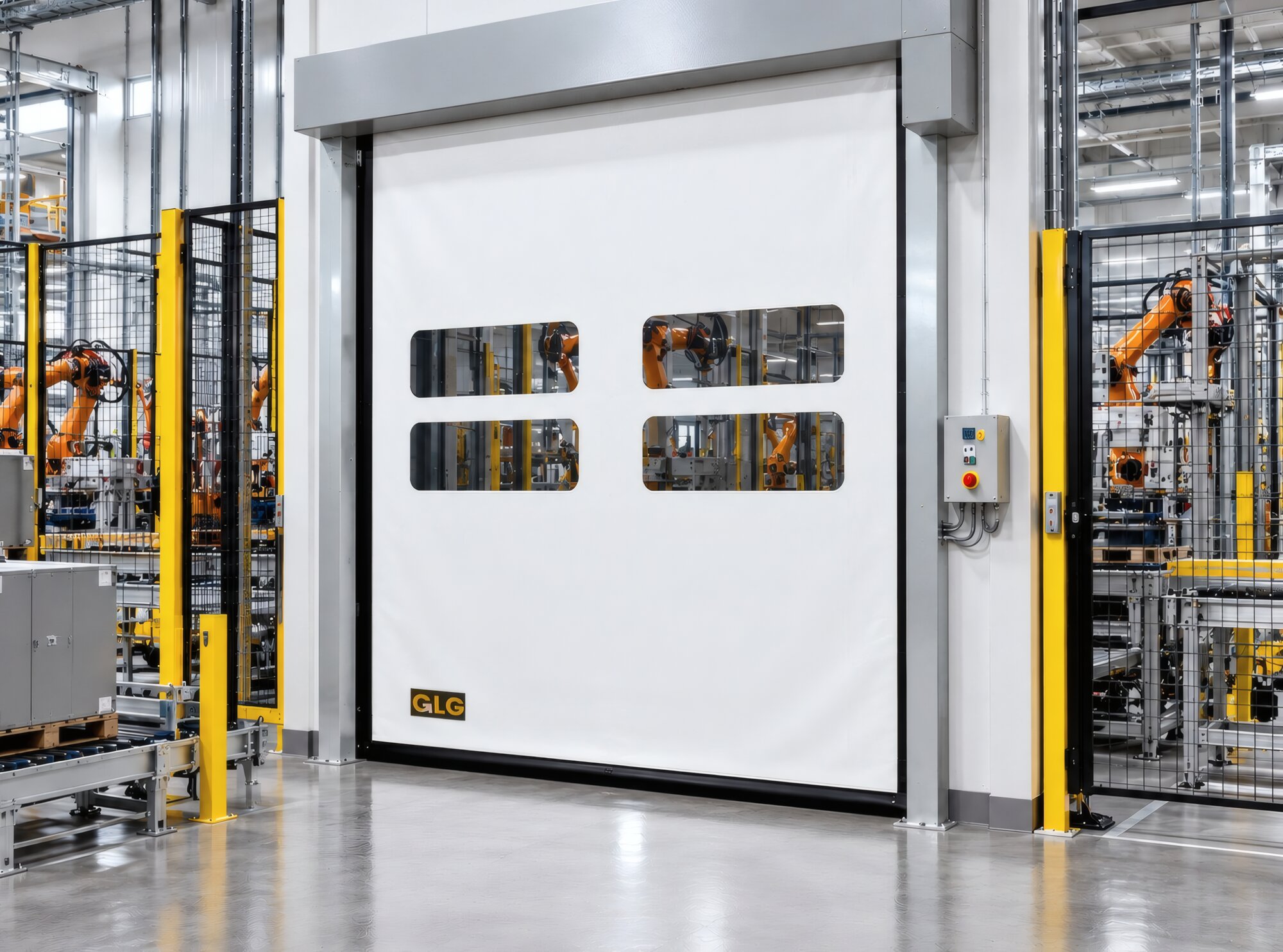

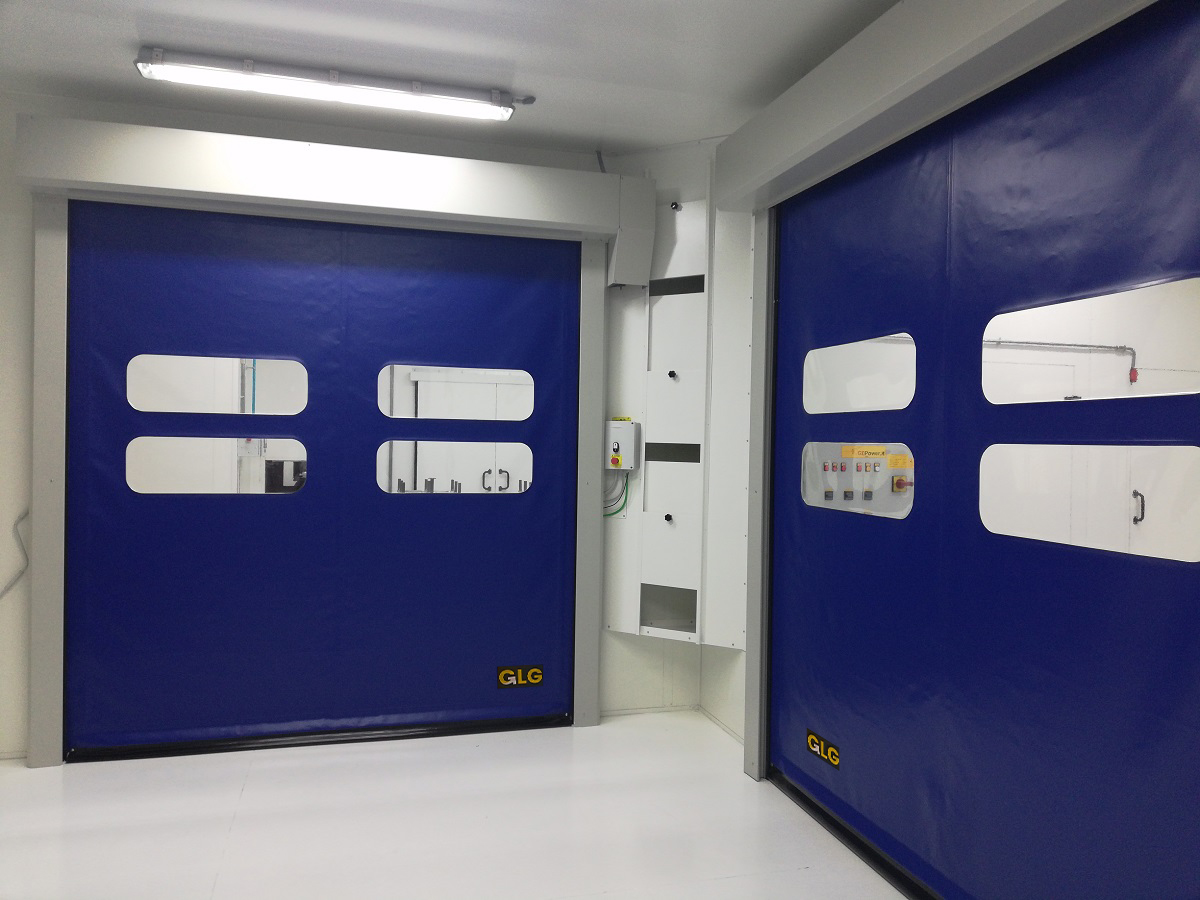

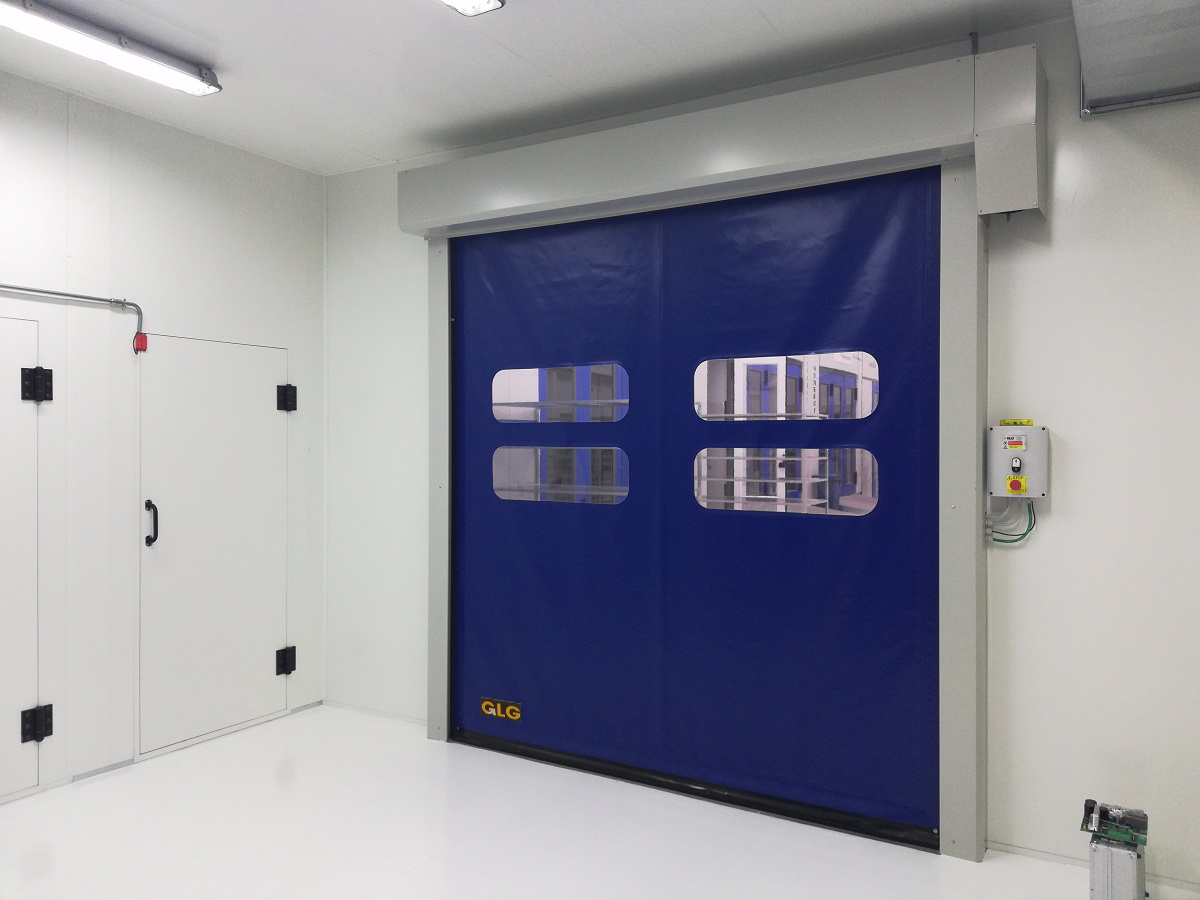

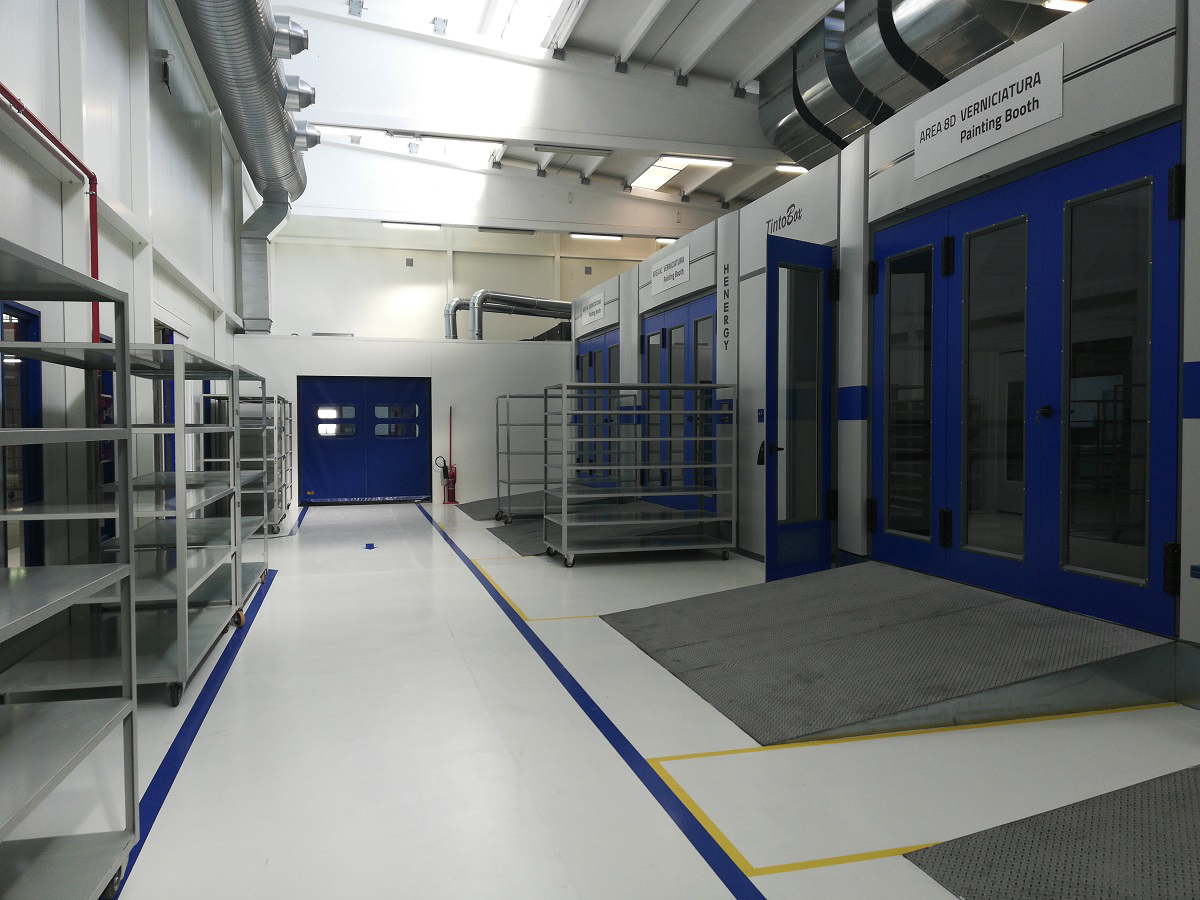

ZipGO Conveyor
Non-standard product, price list not available.
The components and construction details are evaluated only on each individual technical project.
So why choose this door?
1. Unparalleled safety
Thanks to safety light curtains (H 2000–2500 mm, SIL 2) and the PL-e SIL 3 door position sensor, the ZipGO Conveyor flexible rapid door provides a high degree of safety for people during processing stops and machine downtime.
2. For industrial automation and machinery
Manufacturers and stakeholders falling under the jurisdiction of the Machinery Directive are subject to administrative and financial penalties in cases of non-compliance with Legislative Decree 81/2008. Various supervisory bodies conduct inspections periodically or in response to accident reports. If deficiencies in the essential safety requirements of machinery are detected, a report must be submitted to the Ministry of Economy.
3. Combined programming
The control panel with 4 operating modes, programmable inputs and outputs and, optionally, Bluetooth or ProfiNet, integrates the door with other machines and manages variable opening and closing cycles.
