Description
Data sheet
Structure
Acciaio inox AISI 304 / 316
Carter motore completamente chiuso
Montanti in Polietilene PE HD 1000 approvato da Reg CE 1935/2004, Reg CE 2023/2006, Reg EU 10/2011 su richiesta
Conformitร FDA: 21 CFR 177 / 21 CFR 178 3297 per compatibilitร con alimenti
In opzione: testata con tetto inclinato per facilitare le operazioni di lavaggio
Standard
5000 mm x H 5000 mm
On request
Possibility to manufacture dimensions larger than the standard
Test
Standard UNI EN 13241/CE
Reference standard: UNI EN13241-1
Wind load resistance: in accordance with EN12424 / EN12444 โ Class 2
Water penetration resistance: in accordance with EN12425 / EN12489 โ Class 5
Air permeability: in accordance with EN12426 / EN12427 โ Class 1
Opening safety: in accordance with EN12453 / EN12445
Mechanical aspects: in accordance with EN12604 / EN12605
Operating cycles: EN12604 / EN12605 โ 1,000,000 cycles
Operating temperature โบ Operation from -10โฏยฐC to +70โฏยฐC
Security
Components
Single / dual pair of ESPE type 2, PL C photocells
Detection range: 20 m
Approvals: CE, UL325, UL508
Operating temperature of photocells: -20โฏยฐC / +50โฏยฐC โ IP65 / 7
Safety edge
Optical barriers H2000โ2500 mm, activation 10 m, SIL 2
Operating temperature of barriers: -40โฏยฐC / +60โฏยฐC โ IP67
Radar with presence/movement discrimination, max installation height 7 m
Operating temperature of radar: -20โฏยฐC / +55โฏยฐC โ IP65
Magnetic loops
Programmable optical / acoustic signals from the control panel
Emergency stop via external button or control panel input
Emergency opening
Manual opening with supplied crank
UPS (not installable in ATEX-certified zones)
Tear-off opening with T-cut (if approved by applicable regulations)
* The ZipGO Food base high-speed door has a design suitable for food environments; however, the products are not subject to specific hygiene regulations. For more stringent requirements, please consult our specialists.
Other technical information
Special requests
Do you need a special feature for this product?
Login or register
Discover all the features of this logistics product to see if it is the right one for your business.
Drawings
Brochure

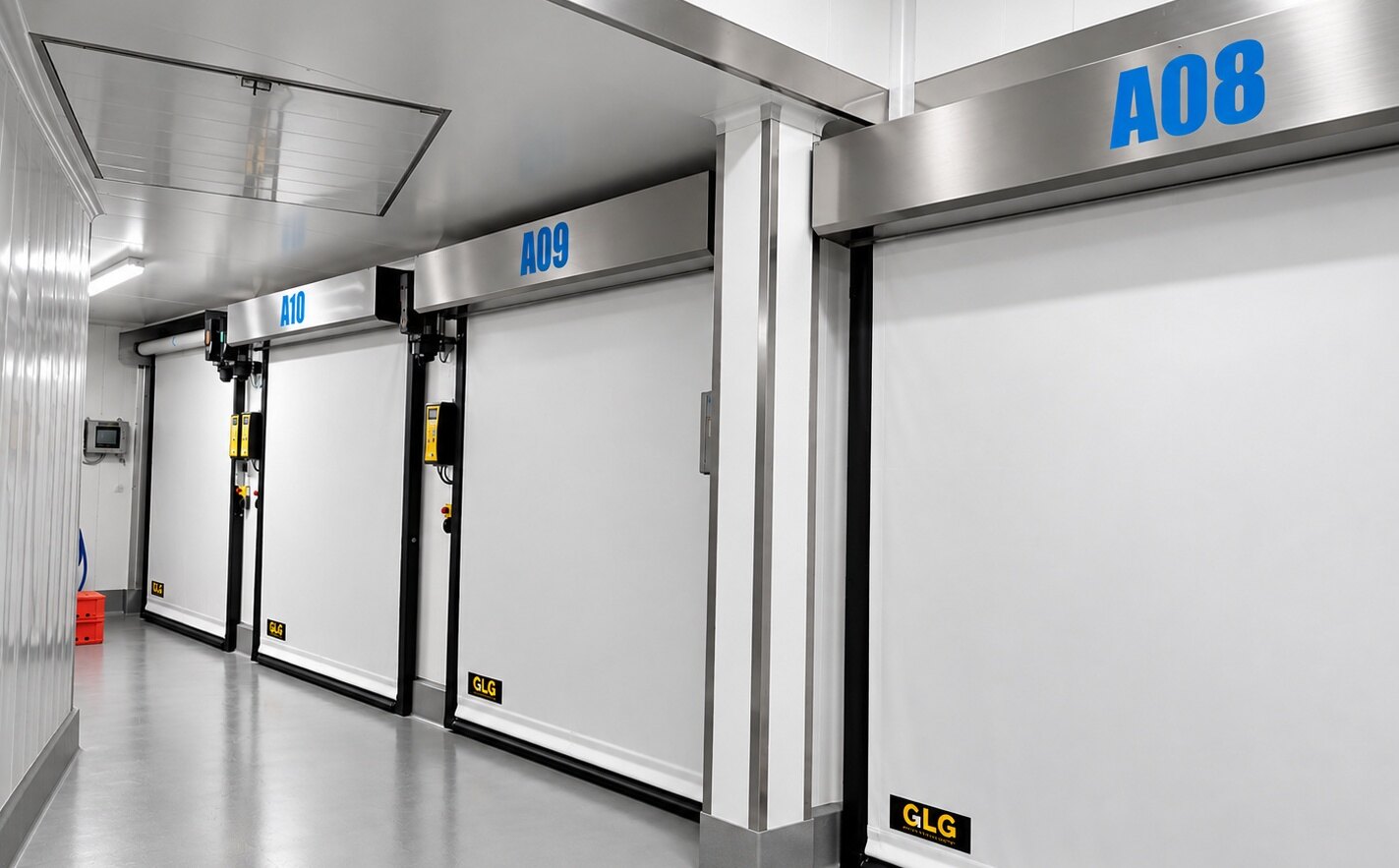

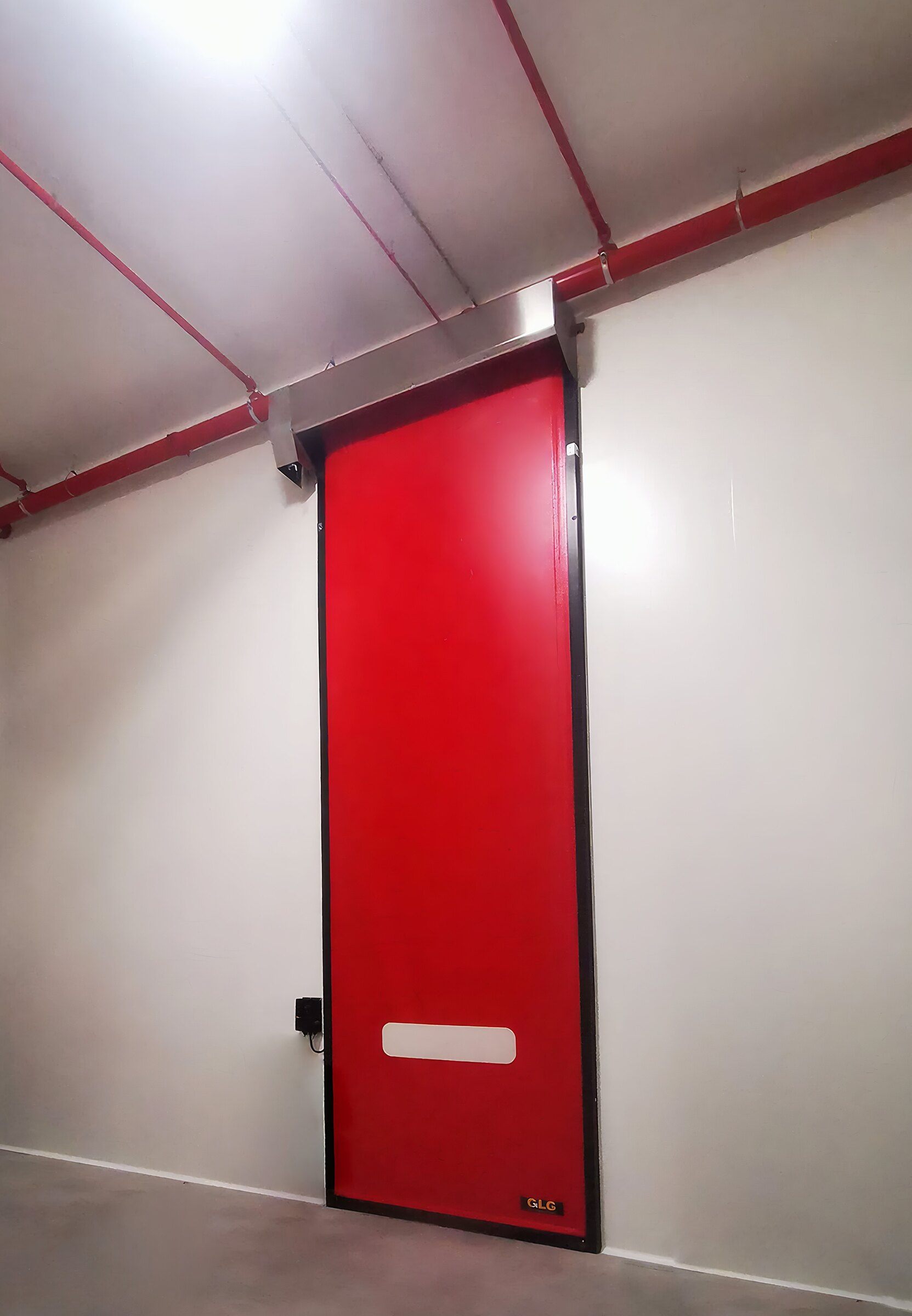

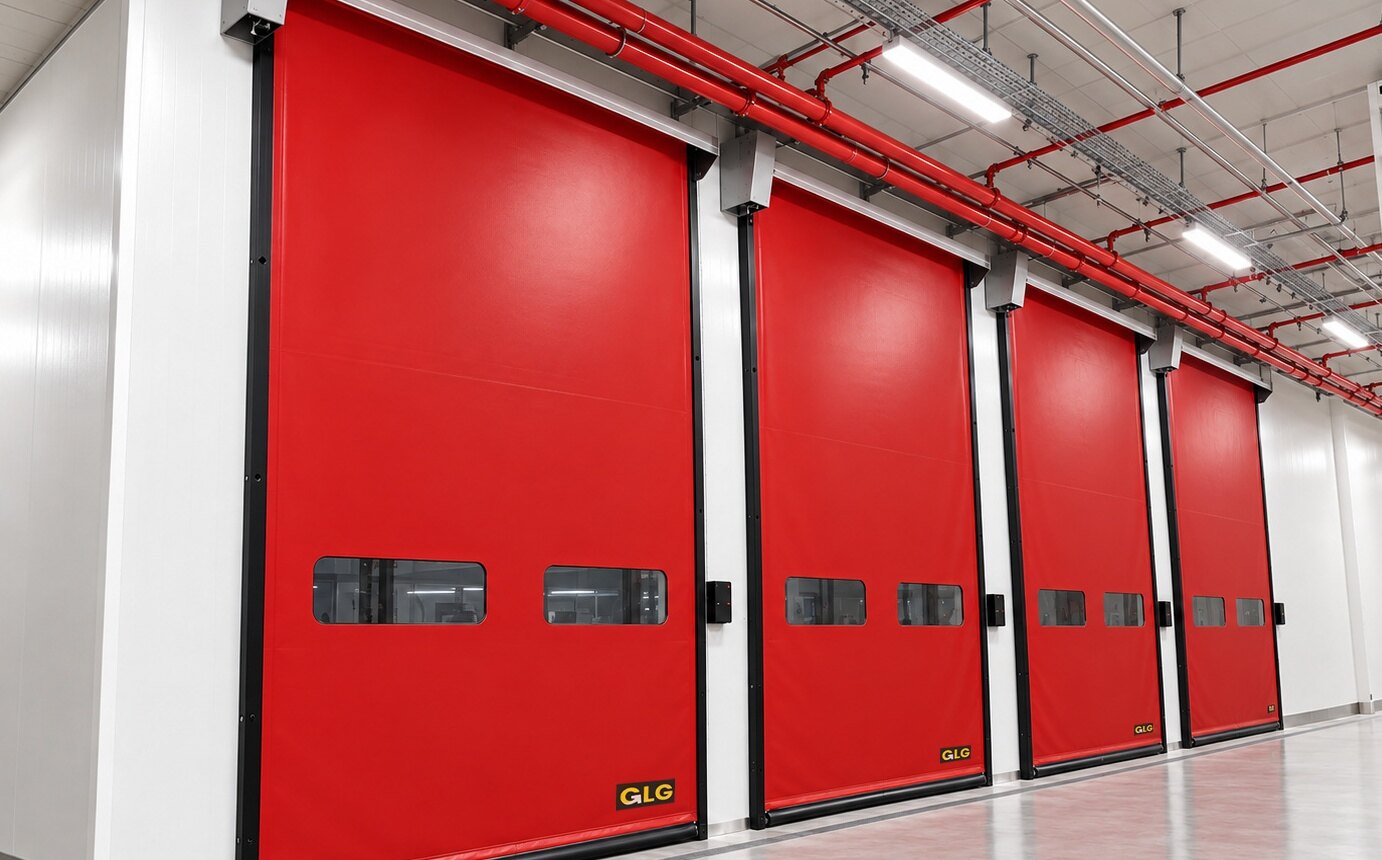

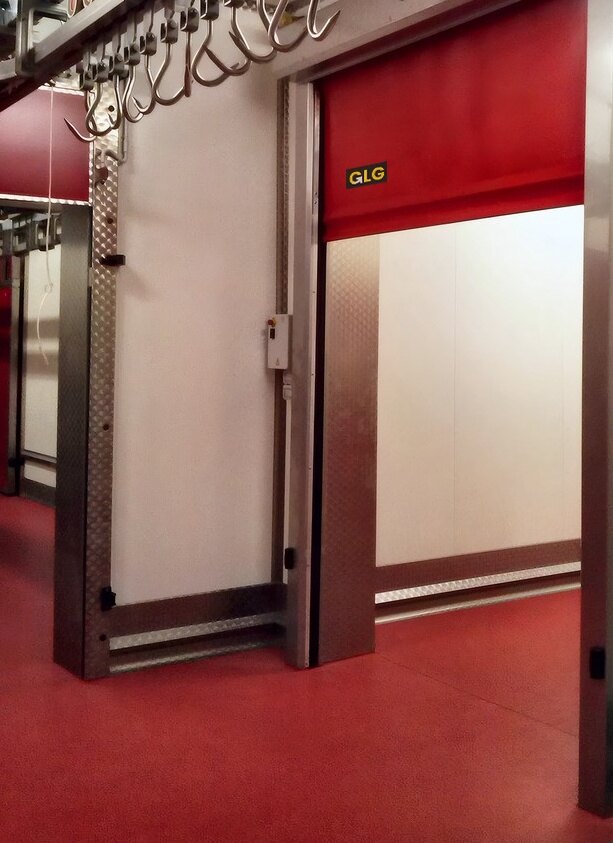

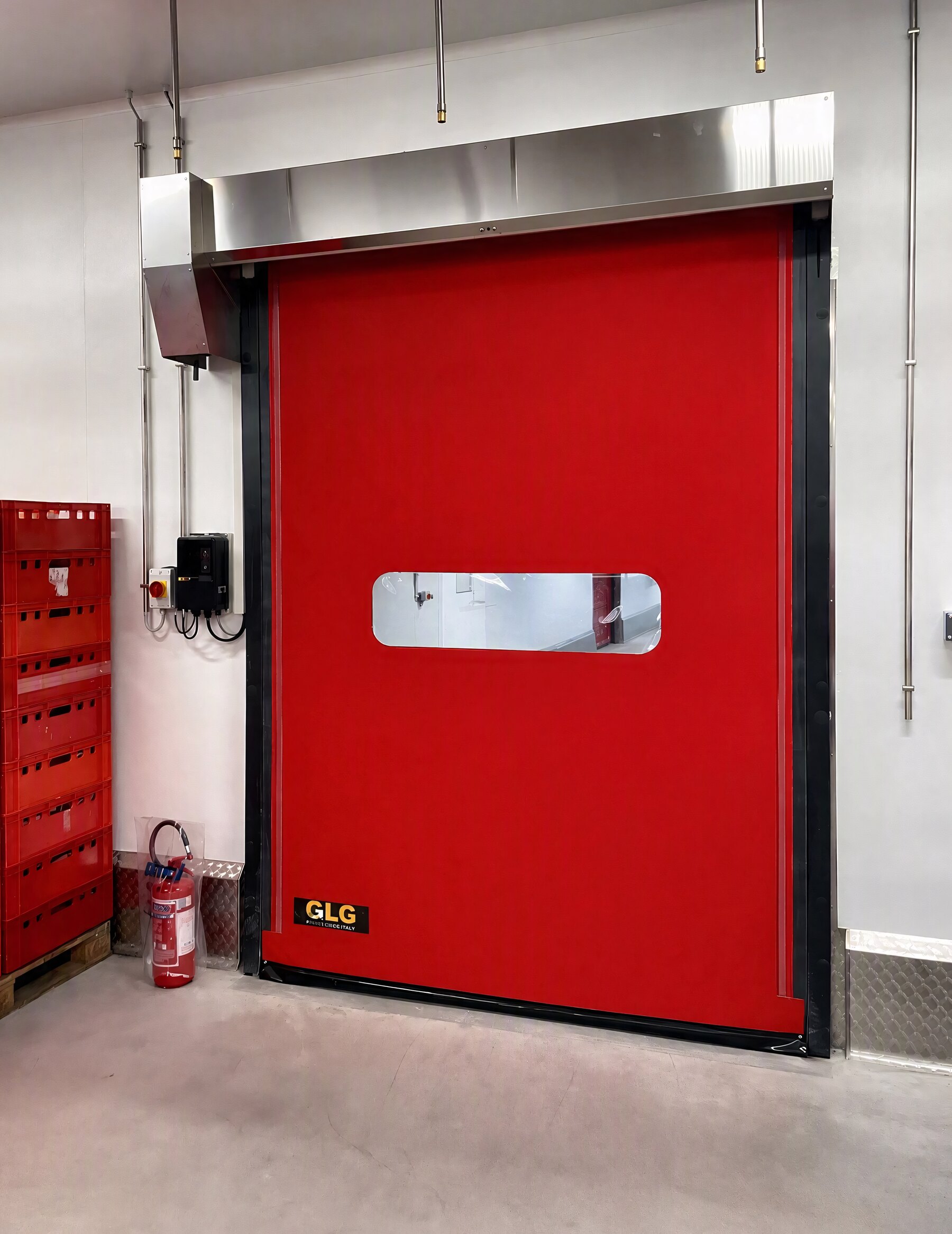

ZipGOFood
Product for food companies and industries.
High speed door easy to disassemble and wash, for proper management of food production and storage environments.
So why choose this door?
1. Hygiene practice
ZipGO Food is an exceptional rapid door meticulously engineered to meet the precise demands of the food industry, encompassing both regulatory mandates and stringent hygiene and health regulations. Available in various configurations, this version boasts a streamlined linear design with only two angle options: 90 degrees or 45 degrees. This deliberate approach significantly minimizes surface area, thereby reducing the accumulation of dirt to the utmost extent. Such meticulous design ensures optimal cleanliness, aligning seamlessly with the industry’s highest standards.
2. Complies with food standards
The hygiene and sanitary regulations in the food sector are rightfully renowned for their strictness, particularly concerning maintenance cleaning procedures for objects in close proximity to food. That’s why we have engineered this version with practical disassembly features, enabling effortless autonomous maintenance for users. This thoughtful design ensures easy disassembly, providing convenient self-maintenance capabilities to those utilizing it, aligning seamlessly with industry standards.
3. Easily removable
This door has been purposefully crafted for practical use in food environments. Through a specific design approach, our engineers have created an industrial rapid door that perfectly aligns with the regulatory standards in hygiene and industrial sanitization. Moreover, it optimizes the necessary processes, ensuring seamless compliance with industry requirements. This thoughtful design ensures the door’s functionality while adhering to the highest standards of cleanliness and efficiency.
