VertiGO Crane

The Crane is the most efficient solution in the Vertigo range for optimizing the closure of working spaces associated with crane operations for handling heavy materials, both from inside to outside and vice versa.

    Ask for a quote

    Leave us your data and you will be contacted by our local agent to receive an ad hoc quote for your needs.

    For external doors

    The promos applicable to your quote are limited, periodic and if they are not clickable it means that they are finished. 1 month validity with 1 promo only applicable for request. No purchase constraint.


    Data sheet



    Suspended not self-supporting

    On request
    Non self-supporting trellis


    x2 per side, broken and shaped according to the size of the crane

    Motor cover

    If there is no double covering, the engine is located inside the structure. If single-capped, positioned on the sides of the crossbar.


    Double-sided PVC ripstop fabric

    1 PVC fabric with choice of colors and weight equal to 950 gr/m²

    Su richiesta
    2x insulated fabric PVC 1350 gr/m²


    Porthole in crystal 1200×300 mm

    Lifting ropes

    High Tenacity Polyester Fiber External Lifting Belts at Constant Pitch

    On request
    High Tenacity Polyester Fiber Internal Lifting Belts Constant Pitch + 2x Safety Belts with 1.5t Strength


    Opening › up to 0,5 m/s

    Closing › up to 0,5 m/s

    Mechanical and electronic

    Control panel

    IP54 painted steel frame (300 x 500 x 150 mm)

    On request
    Stainless steel, PVC frame (300 x 400 x 150mm)

    Components and features

    • Motor and switchgear protection category IP54
    • Modular thermal protection
    • Power transmitters
    • Start/ Stop button
    • Emergency stop button

    Main supply

    400V AC three-phase


    Standard UNI EN 13241/CE

    Wind pressure

    Ref.s EN 12424, EN 12444

    Class 2 std
    Class 4/5 special projects


    Ref.s EN 12604, EN 12605

    1.000.000 of cycles

    Operating temperature › -30 C°+70°C.

    * The tests refer to the Crane door with double curtain feature and may vary depending on the size of the door.



    IP65 Safety Resistive Rib

    Emergency opening


    Special requests

    Do you need a special feature for this product?

    Login or register

    Discover all the features of this logistics product to see if it is the right one for your business.



    VertiGO Crane

    Product for overhead crane.

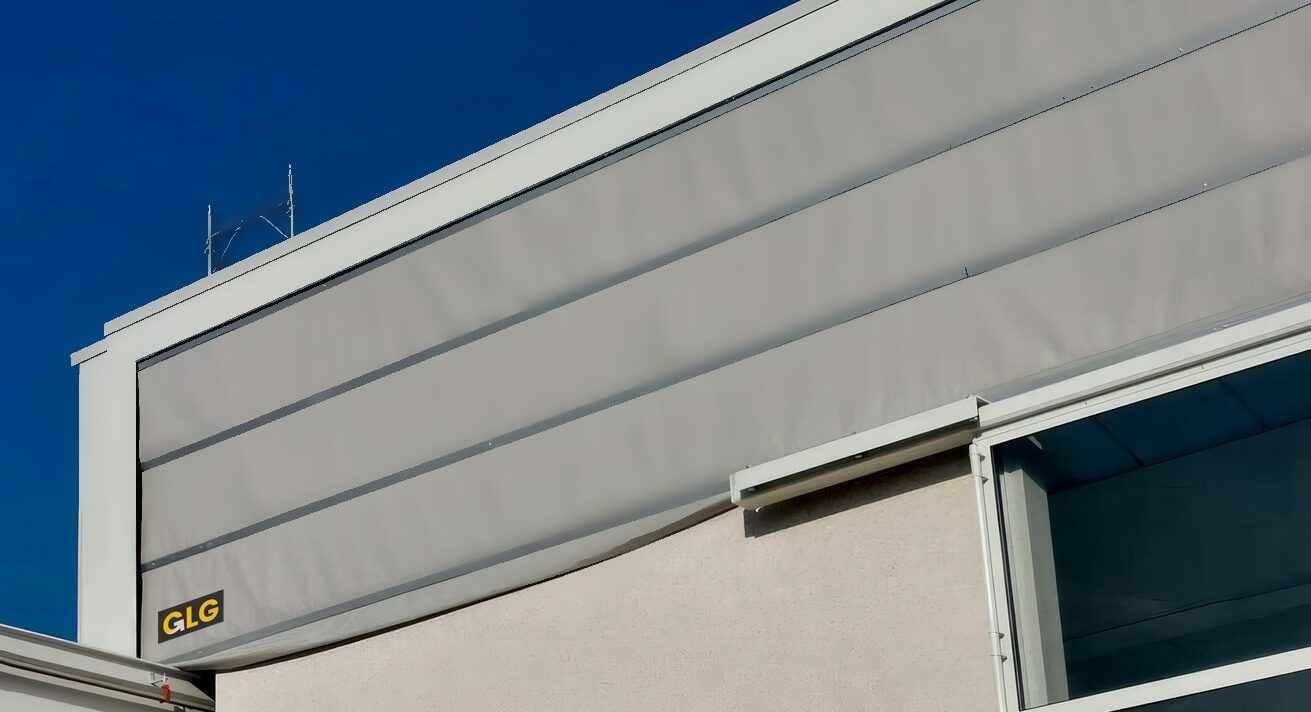

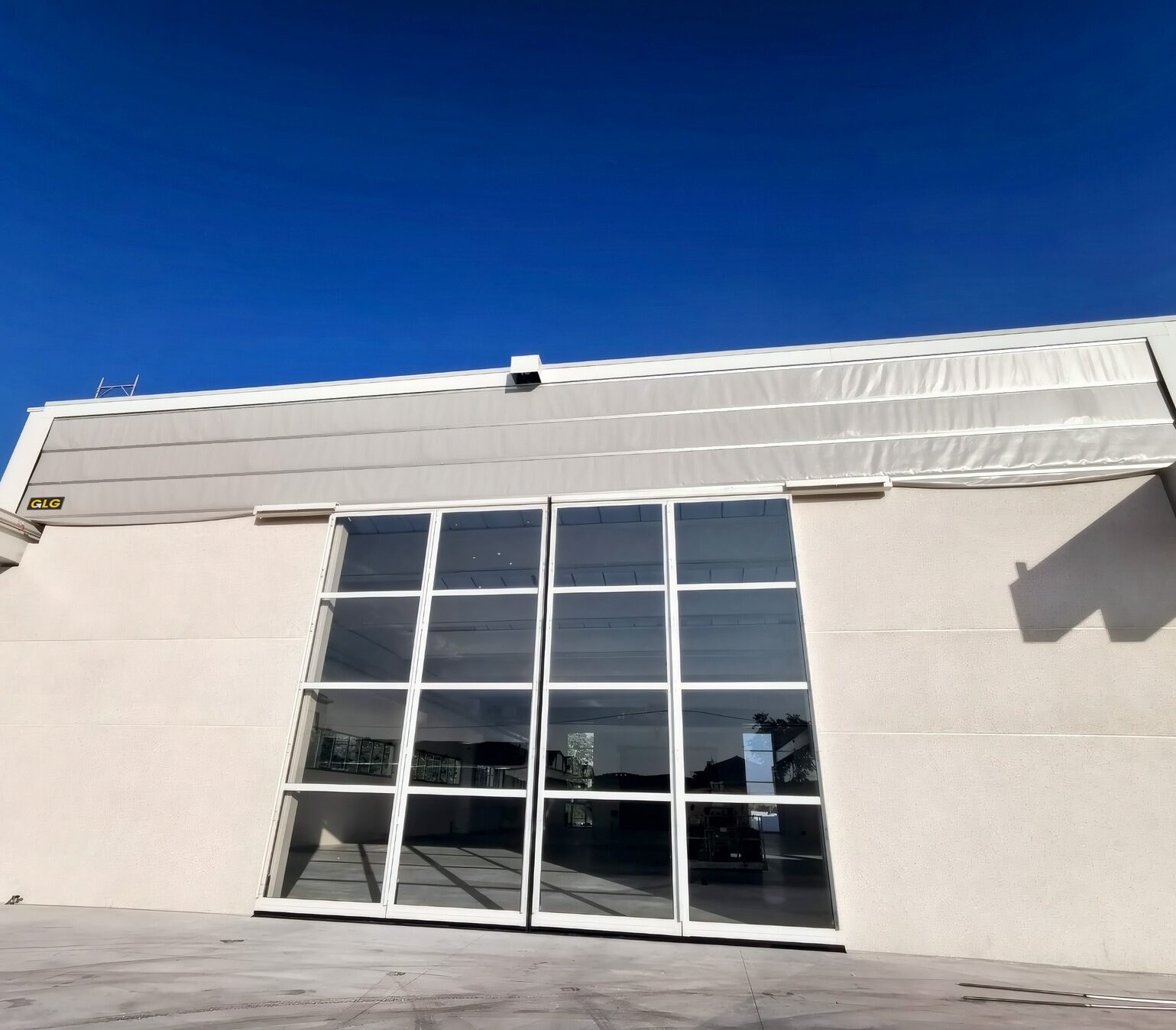

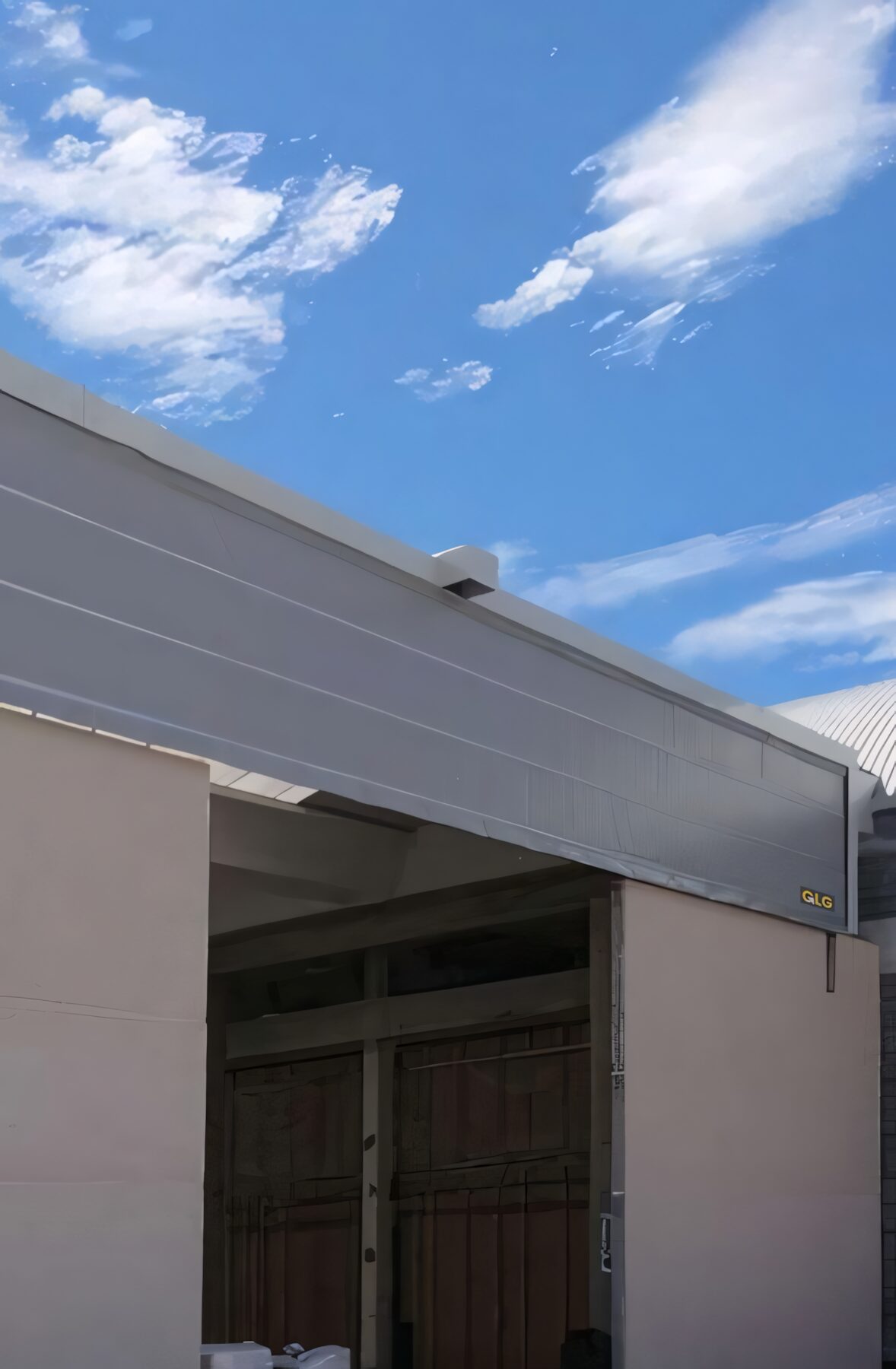

    Fold-up rapid door that regulates the passage of materials that are transported by means of a crane from the inside to the outside of the warehouse and vice versa.

    So why choose this door?

    1. By his t-cover

    This door is equipped with a specially shaped sheet capable of engaging inside the broken uprights, facilitating the complete locking of the curtain from under the beam to the ground. In standard configurations, there are 4 broken uprights: 2 higher ones in the section where the tarp is wider to accommodate the passage of the crane, and 2 others delineating the ground area for vehicle access.

    2. To improve the efficiency of the building

    A structure with suspended height ensures a physical barrier to close the specific crane compartment when not in use. A field study has revealed that 70% of operators engaged in manual tasks within warehouses where cranes are present suffer from rheumatism caused by exposure to drafts of air.

    3. For customised shaping

    The advice offered by our operational technicians is meticulously customized to direct clients toward the most optimal solutions, meticulously considering the unique requirements of their specific field as well as individual needs. Due to the bespoke nature of these projects, they undergo a comprehensive evaluation that encompasses, for example, intricate shipbuilding considerations. This evaluation may also include in-depth studies on high-speed doors and their associated accessories, ensuring a meticulous approach to meeting the client’s demands.
